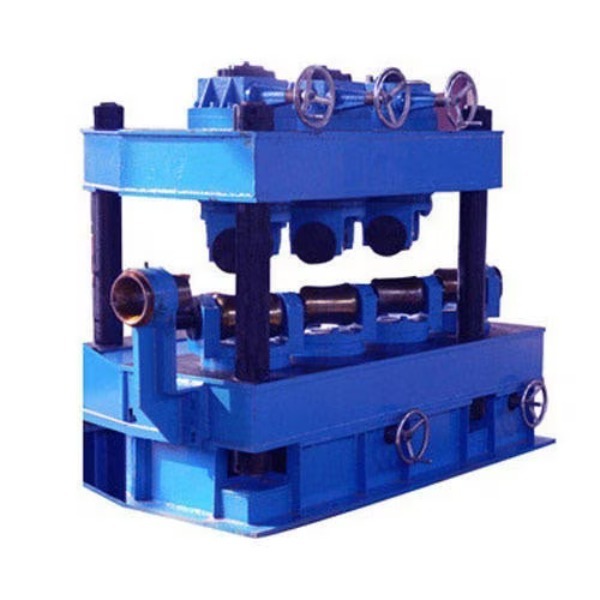

Gallium Equipment Pvt. Ltd.'s Pipe Straightening Machine stands as a cornerstone in modern tube manufacturing, delivering unmatched precision for ERW (Electric Resistance Welded) and stainless steel (SS) tubes. Produced on high-speed tube mills or draw benches, these tubes often emerge with subtle bends or distortions from the intense forming and welding processes. Post-annealing treatments can introduce additional warping due to thermal stresses. This machine addresses these challenges head-on, applying controlled mechanical force through a series of hardened rollers to realign the tube's molecular structure. The result? Tubes that achieve straightness tolerances as tight as 0.5mm per meter, far surpassing industry standards for demanding applications.
In sectors like engineering and automotive manufacturing, straight tubes form the backbone of reliable assemblies. Consider automotive exhaust systems, where even minor curvatures can lead to vibration-induced failures or improper fitment during assembly lines. Hydraulic cylinders in heavy machinery demand perfectly straight tubes to maintain seal integrity under high pressures. Structural frameworks in construction rely on aligned pipes to ensure load-bearing stability. Without proper straightening, manufacturers face high scrap rates, delayed shipments, and costly rework. Gallium's machine eliminates these pain points, integrating seamlessly into existing production workflows to boost output quality and profitability.
Core Technology and Design
At the heart of the Pipe Straightening Machine lies a robust frame constructed from high-grade steel, capable of withstanding continuous operation in demanding factory environments. Seven to nine precisely calibrated rollers—arranged in a staggered configuration—grip the tube from multiple angles. As the tube passes through, each roller pair imparts incremental corrections, progressively eliminating bows, twists, and waves without compromising wall thickness or surface finish.
Operators benefit from fully adjustable roller gaps, accommodating tube diameters from 10mm to 100mm (½-inch to 4 inches) and wall thicknesses ranging from 0.5mm to 10mm. This versatility suits a wide array of ERW and SS grades, including 304, 316, and API-standard pipes. A powerful geared motor, typically rated at 5-15 HP depending on model size, drives the rollers at variable speeds up to 20 meters per minute. This ensures smooth throughput without overheating or material fatigue. Safety features like emergency stops, overload protection, and interlocked guards comply with international standards such as ISO 9001 and CE certification.
Advanced models incorporate digital controls for automated adjustments. Touchscreen interfaces allow presets for common tube profiles, reducing setup time from hours to minutes. Real-time monitoring via sensors detects deviations and auto-corrects roller pressure, minimizing operator intervention. For high-volume plants, tandem configurations link multiple units for end-to-end processing, handling everything from raw mill output to finished annealed products.
Operational Advantages
Efficiency defines the Gallium Pipe Straightening Machine. Traditional manual straightening methods—relying on presses or hammers—consume excessive labor and time while risking surface scratches. In contrast, this automated system processes up to 500 tubes per hour, slashing production cycles by 25-40%. Energy consumption remains low at under 10 kWh per shift, thanks to efficient drive systems and minimal friction design.
Post-straightening, tubes exhibit superior mechanical properties. Tensile strength improves due to uniform stress distribution, and ovality reduces to less than 0.5%, critical for seamless drawing operations downstream. In automotive applications, straightened tubes feed directly into bending or end-forming stations without secondary alignment. Engineering firms report a 30% drop in rejection rates during quality checks, translating to substantial cost savings—often recovering the machine's investment within 12-18 months.
Maintenance proves straightforward. Hardened chrome-plated rollers resist wear, lasting over 50,000 operating hours before refurbishment. Quick-change mechanisms allow swaps in under 30 minutes. Lubrication points are centralized, and self-diagnostic alerts prevent breakdowns. Gallium backs every unit with a 24-month warranty and on-site training, ensuring operators master the system rapidly.
Applications Across Industries
Automotive manufacturers deploy this machine for fuel lines, brake tubing, and chassis components, where precision straightness prevents leaks and fatigue cracks. In engineering, it prepares tubes for hydraulic actuators, pneumatic cylinders, and precision instrumentation. Oil and gas sectors use it for seamless SS pipes in refineries, while furniture makers appreciate flawlessly straight tubing for aesthetic and functional frames.
For ERW tube mills, integration post-welder or sizing stands eliminates downstream defects. Draw bench operators straighten deep-drawn SS tubes for sanitary applications like food processing or pharmaceuticals. Annealing lines benefit immensely, as heat-treated tubes regain perfect alignment before final packaging. Gallium customizes machines for niche needs, such as heavy-wall tubes in construction scaffolding or thin-wall hypodermic tubing in medical devices.
